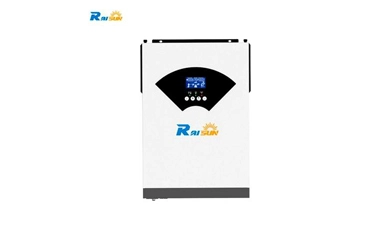

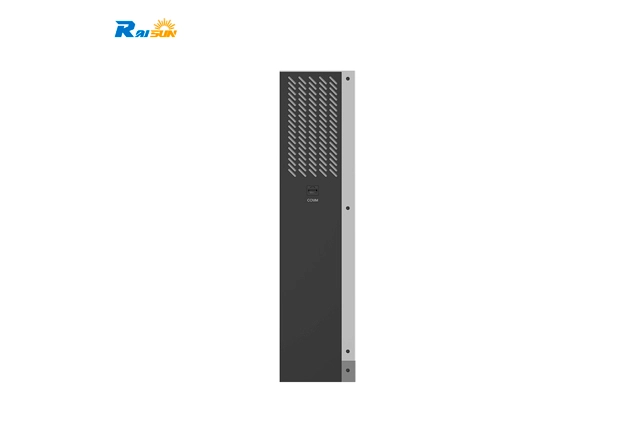

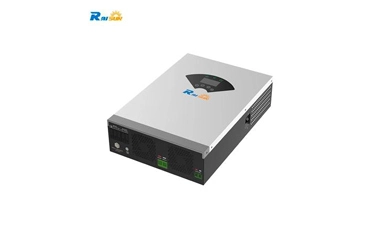

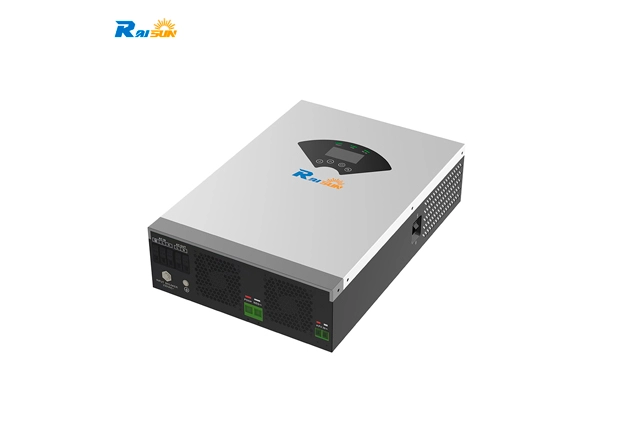

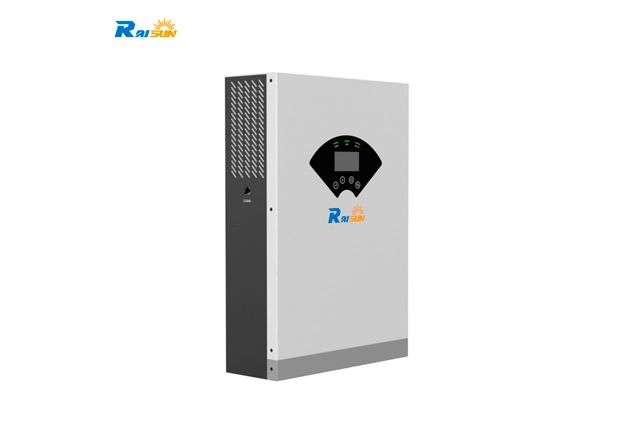

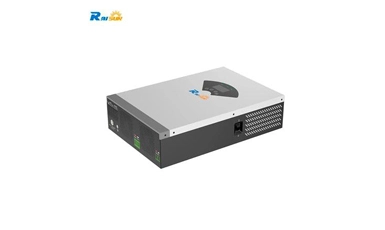

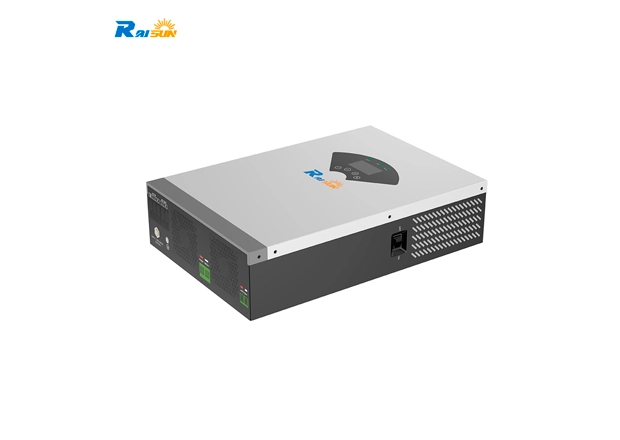

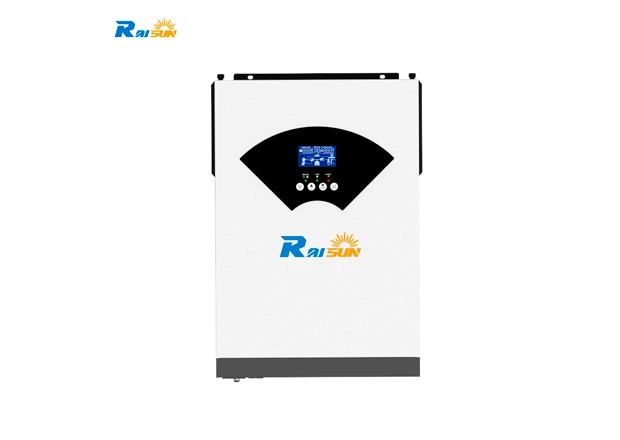

Rated Power 5500W 48VDC Solar Inverter

It is a bi-directional energy storage inverter, suitable for photovoltaic systems with batteries to store energy. The energy generated by photovoltaics can be given priority to the load; if there is excess energy, it will charge the battery, and if there is still excess energy, it will be sold to the grid.

Rated Power 5500W 48VDC Solar Inverter Details

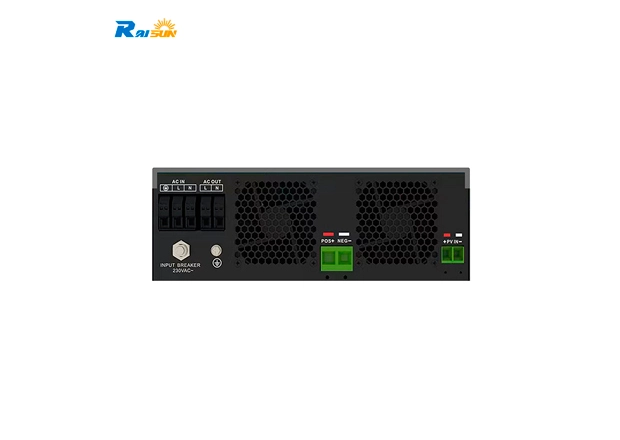

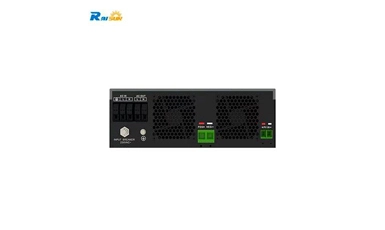

Rated Power 5500W 48VDC Solar Inverter Input and Output

The inverter is a single phase system and has selectable voltage ranges. In addition, it supports automatic sensing of 50Hz/60Hz frequency. In terms of output, the rated output power of the inverter is 5500W/5500VA, and the AC voltage regulation is 230VAC±5% in battery mode.

Rated Power 5500W 48VDC Solar Inverter Battery

The inverter uses a 48VDC battery and has a float voltage of 54VDC. It also provides overcharge protection to ensure that the battery will not be damaged during charging. The maximum charging current is 80A, which can be used for fast charging battery system.

Rated Power 5500W 48VDC Solar Inverter Solar Power Charger

Equipped with a solar charger, it can realize the maximum 6000W photovoltaic array power input. It adopts maximum power point tracking (MPPT) technology, the maximum charging current is 100A, and has a charging efficiency as high as 98%.

Rated Power 5500W 48VDC Solar Inverter LCD Display Module

The inverter adopts a high-definition super-large LCD display module, which can clearly display various data and parameters, and perform various function settings.

Rated Power 5500W 48VDC Solar Inverter Operating Mode

It has three working modes: load priority mode, battery priority mode, and power selling mode. It will automatically adjust the use of solar cells and grids according to the power demand of the load to ensure a stable power supply for the load.

Specification of Rated Power 5500W 48VDC Solar Inverter

ModelRaisun RSI41-5.5KW
Maximum PV Input Power5500W
Rated Output Power5500W/5500VA
Maxium Solar Charging Current100A
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power11000VA
Efficiency(Peak) PV to INV97%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
Battery Voltage48VDC
Floating Charge Voltage54VDC
Overcharge Protection63VDC
Maximum Charge Current80A
Maximum PV Array Power6000W
MPPT Range Operating Voltage120~450VDC
Maximum PV Array Open Circuit Voltage500VDC
Maximum Charging Current100A
Maximum Efficiency98%
Dimension, D×W×H440*300*100mm
Net Weight(kgs)12
Comumication InterfaceUSB/RS232/GPRS/WIFI
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
