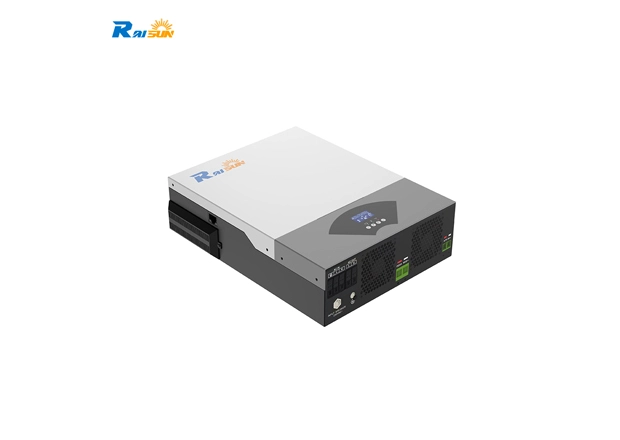

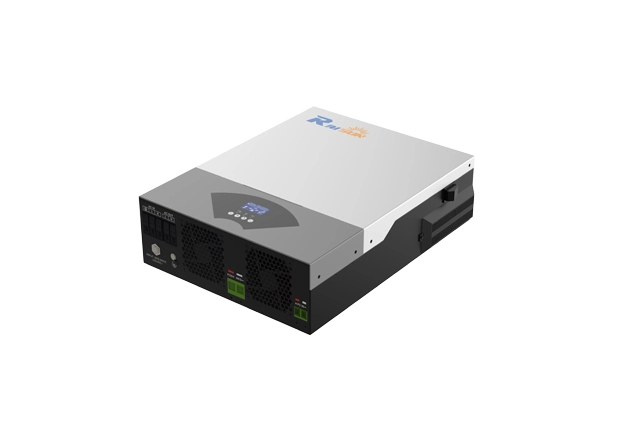

Rated Power 1500W 12VDC Off Grid Solar Inverter

Optimized for 12 VDC system voltage, it is the perfect addition to any off-grid solar system. It is fully applicable to various electrical appliances with a power of less than 1500W, such as: mobile phones, notebook computers, cameras, TVs, fans, refrigerators, game consoles, DVDs, MDs, lighting, tools and instruments, outdoor operations, solar power generation, wind power generation, etc.

Rated Power 1500W 12VDC Off Grid Solar Inverter Details

Rated Power 1500W 12VDC Off Grid Solar Inverter Charging Capability

With a maximum solar charging current of 80A, this inverter can charge efficiently to maximize the power of the solar panel.


Rated Power 1500W 12VDC Off Grid Solar Inverter Output voltage

The inverter has AC voltage regulation function in battery mode, the output AC voltage is 230VAC, and it has a stability of ±5%. This ensures that connected devices can receive a steady supply of power to protect their normal operation.



Rated Power 1500W 12VDC Off Grid Solar Inverter Pure sine wave

The inverter is capable of producing a pure sine wave AC output, which is similar to the power waveform provided by the traditional grid. This high-quality power output helps to provide stable power for devices that require high power quality.




Rated Power 1500W 12VDC Off Grid Solar Inverter LCD Display

The inverter is equipped with an LCD display, which can display important information about system status, battery voltage, charging current, etc. This allows users to easily monitor and understand the operating conditions of the system.



Rated Power 1500W 12VDC Off Grid Solar Inverter Battery protection

The inverter has multiple battery protection functions, including floating charge voltage setting, overcharge protection and maximum AC charging current, etc. The floating charge voltage is set to 13.5VDC to maintain a stable state of the battery; the overcharge protection is set to 16VDC to avoid battery overcharging; the maximum AC charging current is 60A to achieve fast charging and protect the battery.

Specification of Rated Power 1500W 12VDC Off Grid Solar Inverter


ModelRaisun RSI44-1.5KW
Phase1-Phase
Maximum PV Input Power1500W
Rated Output Power1500VA/1500W
Maxium Solar Charging Current80A
INPUT
Voltage230VAC
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power3000VA
Efficiency(Peak) PV to INV98%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
BATTERY & AC CHARGER
Battery Voltage12VDC
Floating Charge Voltage13.5VDC
Overcharge Protection16VDC
Maximum AC Charge Current60A
SOLAR CHARGER
Maximum PV Array Power2000W
MPPT Range Operating Voltage90~400VDC
Maximum PV Array Open Circuit Voltage450VDC
Maximum Charging Current80A
Maximum Efficiency98%
PHYSICAL
Dimension, D×W×H348*270*95mm
Net Weight(kgs)4
Comumication InterfaceUSB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
