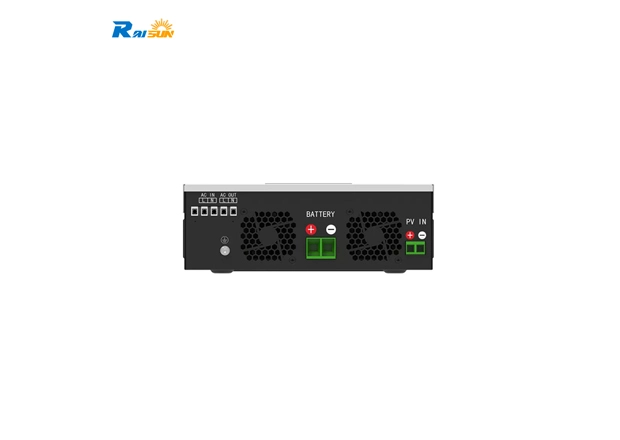

Rated Power 3200W 24VDC PV Inverter

This photovoltaic inverter provides high-efficiency solar charging with versatile input and output characteristics, including a wide input voltage range and stable output voltage.

Rated Power 3200W 24VDC PV Inverter Details

Rated Power 3200W 24VDC PV Inverter Solar charging

The maximum solar charging current is 80A, the maximum photovoltaic input power is 3000W, and the maximum charging efficiency reaches 98%, providing high-efficiency solar charging function.

Rated Power 3200W 24VDC PV Inverter Input and output

The input voltage can be selected in a wide range, suitable for personal computers and household appliances, the output voltage is stable, with 230VAC±5% AC voltage regulation, and the output power can reach 3200VA/3000W.

Rated Power 3200W 24VDC PV Inverter Protective function

It has multiple protection functions such as short circuit, overload, and over temperature to ensure the safe operation of equipment and inverters. It also has battery overcharge protection to prolong battery life.

Rated Power 3200W 24VDC PV Inverter Multiple communication interfaces

Support USB, RS232, GPRS, WIFI and other communication interfaces, which is convenient for users to connect with the inverter and monitor remotely.

Rated Power 3200W 24VDC PV Inverter Work environment adaptability

The inverter is suitable for a relative humidity range of 5% to 95%, an operating temperature range of 0°C to 55°C, and a storage temperature range of -15°C to 60°C, with good environmental adaptability.

Specification of Rated Power 3200W 24VDC PV Inverter

ModelRaisun RSI44-3.2KW
Maximum PV Input Power3000W
Rated Output Power3200VA/3000W
Maxium Solar Charging Current80A
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power6400VA
Efficiency(Peak) PV to INV98%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
Battery Voltage24VDC
Floating Charge Voltage27VDC
Overcharge Protection33VDC
Maximum AC Charge Current60A
Maximum PV Array Power3000W
MPPT Range Operating Voltage90~400VDC
Maximum PV Array Open Circuit Voltage450VDC
Maximum Charging Current80A
Maximum Efficiency98%
Dimension, D×W×H348*270*95mm
Net Weight(kgs)5
Comumication InterfaceUSB/RS232/GPRS/WIFI
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
