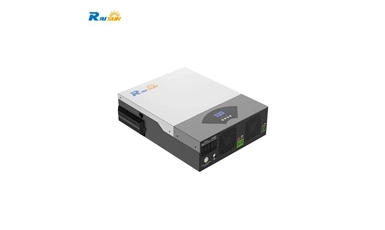

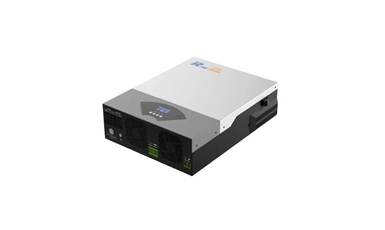

Rated Power 3200W 24VDC Battery Inverter

The Rated Power 3200W 24VDC Battery Inverter is a high-power portable power inverter designed to convert DC (direct current) power from a 24V battery into AC (alternating current) power. It has a maximum rated power output of 3200 watts, which means it can handle demanding electrical loads. This portable inverter with inbuilt battery is suitable for applications where a significant amount of power is required, such as powering heavy-duty appliances, tools, or equipment. It provides a reliable and stable power source for off-grid systems, backup power solutions, or mobile applications.

Rated Portable Power 3200W 24VDC Battery Inverter Details

Rated Power 3200W 24VDC Battery Inverter Multifunctional Charger

This portable inverter with inbuilt battery has multiple charging modes and options, including a maximum solar charging current of 80A and a maximum AC charging current of 60A. This enables it to efficiently fast charge a 24V battery from a solar panel or an AC power source, providing reliable backup power for the system.

Rated Power 3200W 24VDC Battery Inverter Output voltage

Provides an output voltage of 230VAC in battery mode, and has a voltage regulation range of ±5%. This ensures that it can still provide stable power when the supply voltage fluctuates, protecting connected equipment from voltage instability.

Rated Power 3200W 24VDC Battery Inverter Waveform output

The solar battery inverter system can provide high-quality AC output waveform to ensure the normal operation of the connected equipment. It automatically senses the frequency range of 50Hz/60Hz to ensure that the output is compatible with the waveform of the mains power supply, and will not cause interference or damage to the device.

Rated Power 3200W 24VDC Battery Inverter Mode setting

With selectable input voltage range, including for personal computers and home appliances. This enables users to select an appropriate voltage range according to actual needs, so as to use the portable power inverter in different scenarios.

Rated Power 3200W 24VDC Battery Inverter MPPT Controller

Equipped with an advanced MPPT (Maximum Power Point Tracking) controller for maximum efficiency solar panel charging. It is able to track the maximum power point of the solar energy panel within the operating voltage range of 90~400VDC, and maximize the use of available solar resources to provide efficient charging performance.

Specification of Rated Power 3200W 24VDC Battery Inverter

ModelRaisun RSI44-3.2KW
Maximum PV Input Power3000W
Rated Output Power3200VA/3000W
Maxium Solar Charging Current80A
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power6400VA
Efficiency(Peak) PV to INV98%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
Battery Voltage24VDC
Floating Charge Voltage27VDC
Overcharge Protection33VDC
Maximum AC Charge Current60A
Maximum PV Array Power3000W
MPPT Range Operating Voltage90~400VDC
Maximum PV Array Open Circuit Voltage450VDC
Maximum Charging Current80A
Maximum Efficiency98%
Dimension, D×W×H348*270*95mm
Net Weight(kgs)5
Comumication InterfaceUSB/RS232/GPRS/WIFI
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
