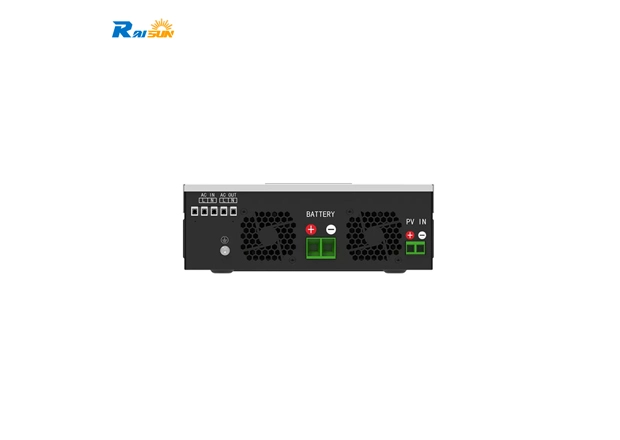

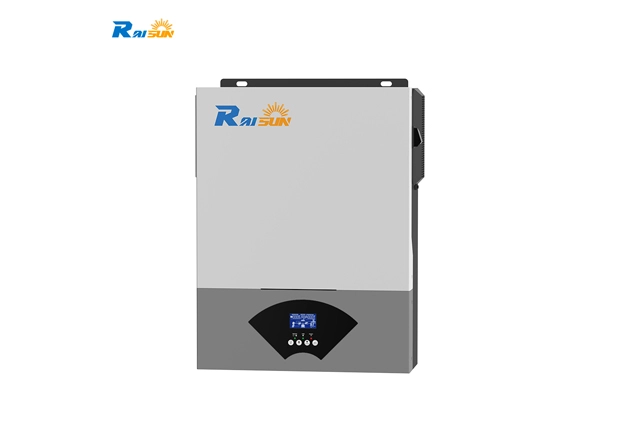

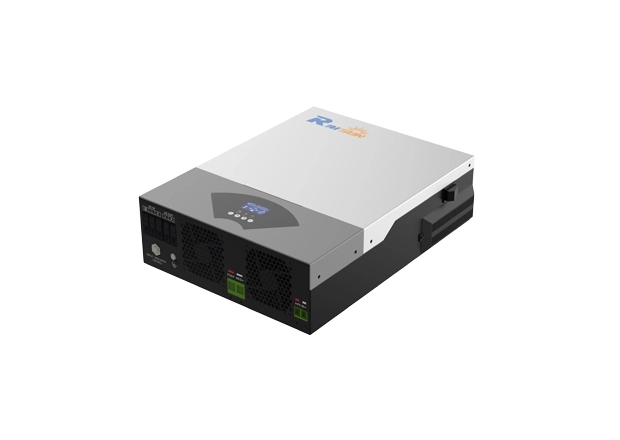

Rated Power 3200W 24VDC Off Grid Solar Inverter

The inverter adopts high-frequency design, which has the advantages of high power density, small size, simple operation, high efficiency of the whole machine, and small no-load loss. Widely used in household systems, communication base stations, monitoring systems, pastoral areas, 5G auxiliary power supply, etc.

Rated Power 3200W 24VDC Off Grid Solar Inverter Details

Rated Power 3200W 24VDC Off Grid Solar Inverter High power output

The rated output power of the inverter is 3200VA/3000W, which can provide high-power AC power and is suitable for large-scale off-grid solar energy systems.


Rated Power 3200W 24VDC Off Grid Solar Inverter Multiple protection functions

The inverter has built-in multiple protection functions, including over-charge protection, over-voltage protection and over-temperature protection. These protection mechanisms can ensure that the inverter and related equipment operate within a safe range, preventing potential damage and failure.


Rated Power 3200W 24VDC Off Grid Solar Inverter Multifunctional Design

This inverter has the function of solar charge controller and AC charger. It supports a maximum solar charging current of 80 amps and a maximum AC charging current of 60 amps to meet the needs of different application scenarios.


Rated Power 3200W 24VDC Off Grid Solar Inverter High-efficiency conversion

The peak efficiency of the inverter reaches 98%, and the energy conversion efficiency from photovoltaic cells to the inverter is very high. This helps to improve the power generation efficiency and overall performance of the photovoltaic system.


Rated Power 3200W 24VDC Off Grid Solar Inverter MPPT working voltage

The maximum power point tracking (MPPT) range of the inverter is 90~400V DC. This enables the inverter to efficiently adjust and optimize the operating point of the photovoltaic panels to ensure the system gets the maximum power output from the solar array.


Specification of Rated Power 3200W 24VDC Off Grid Solar Inverter


ModelRaisun RSI44-3.2KW
Phase1-Phase
Maximum PV Input Power3000W
Rated Output Power3200VA/3000W
Maxium Solar Charging Current80A
INPUT
Voltage230VAC
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power6400VA
Efficiency(Peak) PV to INV98%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
BATTERY & AC CHARGER
Battery Voltage24VDC
Floating Charge Voltage27VDC
Overcharge Protection33VDC
Maximum AC Charge Current60A
SOLAR CHARGER
Maximum PV Array Power3000W
MPPT Range Operating Voltage90~400VDC
Maximum PV Array Open Circuit Voltage450VDC
Maximum Charging Current80A
Maximum Efficiency98%
PHYSICAL
Dimension, D×W×H348*270*95mm
Net Weight(kgs)5
Comumication InterfaceUSB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
