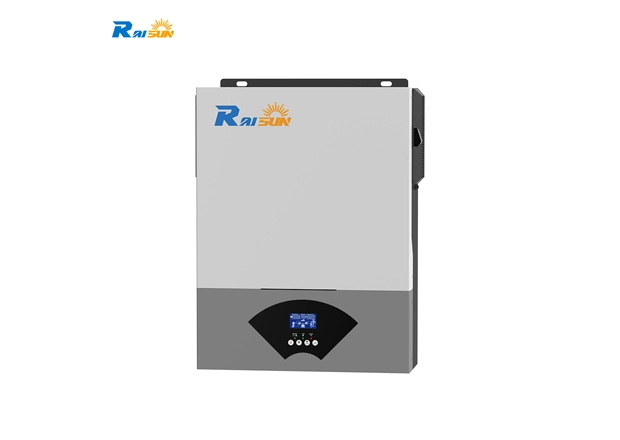

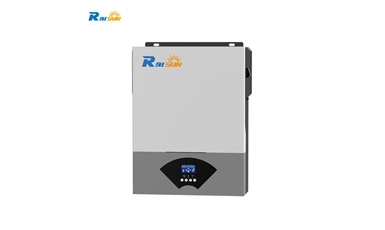

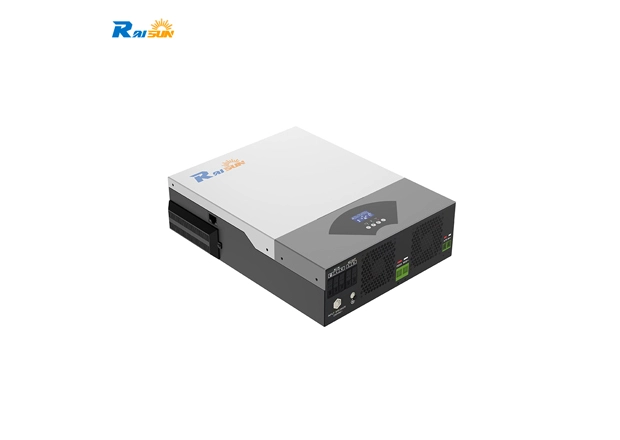

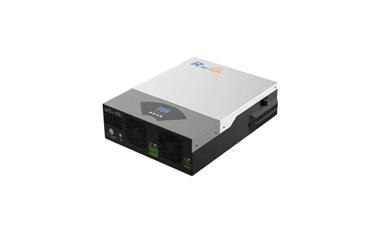

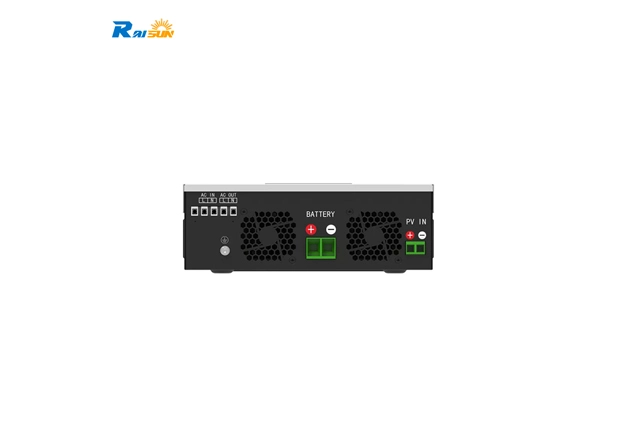

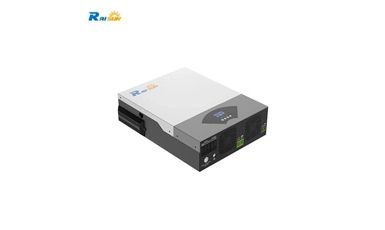

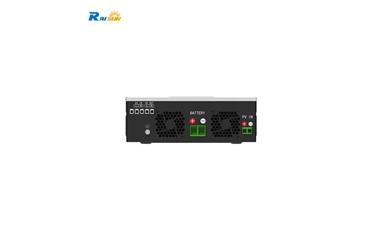

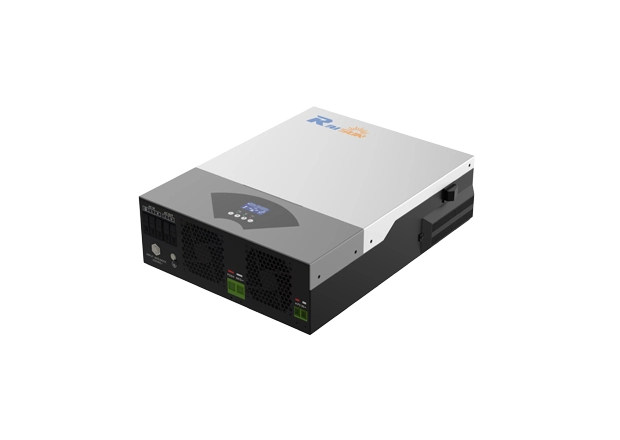

Rated Power 2400W 24VDC PV Inverter

This is a single phase inverter rated at 2400 watts, 24 volts DC. It has high performance, multiple communication interfaces, multiple protection functions, multi-functional design and the ability to adapt to different environments. It is a powerful, safe and reliable product with wide adaptability.

Rated Power 2400W 24VDC PV Inverter Details

Rated Power 2400W 24VDC PV Inverter High efficiency

The peak efficiency of this photovoltaic inverter is 98%, and the energy conversion efficiency from photovoltaic cells to the inverter is very high. This helps maximize the power generation efficiency of the photovoltaic system.

Rated Power 2400W 24VDC PV Inverter Multiple communication interfaces

The inverter is equipped with various communication interfaces such as USB, RS232, GPRS and WIFI, which are convenient for users to monitor and remotely control, and obtain system operating status and data in real time.

Rated Power 2400W 24VDC PV Inverter Multiple protection functions

The inverter has multiple protection functions, such as over-charge protection, over-voltage protection and over-temperature protection. These protection functions can ensure that the photovoltaic inverter and related equipment operate within a safe range, and improve the stability and reliability of the system.

Rated Power 2400W 24VDC PV Inverter Multifunctional Design

This inverter has both solar charge controller and AC charger functions. It can accept a maximum solar charging current of 80 amps and a maximum AC charging current of 60 amps to meet the needs of different application scenarios.

Rated Power 2400W 24VDC PV Inverter Wide operating temperature range

The inverter operates within the operating temperature range of 0°C to 55°C, suitable for use under different climatic conditions. In addition, it has high humidity resistance and can work normally in an environment with a relative humidity of 5% to 95%.

Specification of Rated Power 2400W 24VDC PV Inverter

ModelRaisun RSI44-2.4KW
Maximum PV Input Power2400W
Rated Output Power2400VA/2400W
Maxium Solar Charging Current80A
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power4800VA
Efficiency(Peak) PV to INV98%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
Battery Voltage24VDC
Floating Charge Voltage27VDC
Overcharge Protection33VDC
Maximum AC Charge Current60A
Maximum PV Array Power3000W
MPPT Range Operating Voltage90~400VDC
Maximum PV Array Open Circuit Voltage450VDC
Maximum Charging Current80A
Maximum Efficiency98%
Dimension, D×W×H348*270*95mm
Net Weight(kgs)5
Comumication InterfaceUSB/RS232/GPRS/WIFI
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
