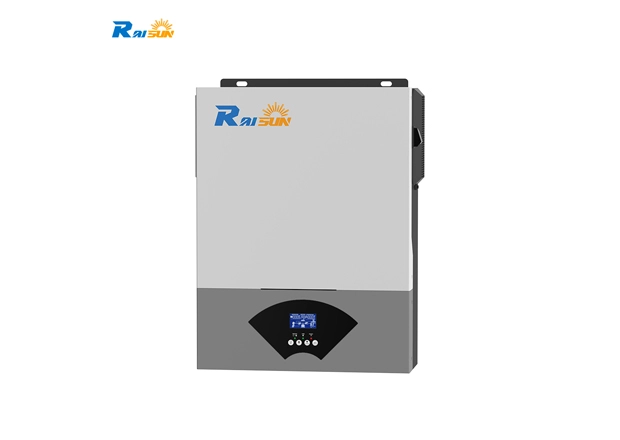

Rated Power 2400W 24VDC Off Grid Solar Inverter

This is a cost-effective solar inverter that accepts both solar and utility input. Functions such as battery charging current, AC/solar charger priority, and DC priority are user-adjustable via the LCD screen and easy push buttons. When the battery voltage is low, it will automatically switch to the AC grid to provide continuous power to the load.

Rated Power 2400W 24VDC Off Grid Solar Inverter Details

Rated Power 2400W 24VDC Off Grid Solar Inverter Advanced MPPT Controller

The grid power off inverter is equipped with an advanced Maximum Power Point Tracking (MPPT) controller that optimizes the output of the solar panels to ensure maximum power from the PV array.


Rated Power 2400W 24VDC Off Grid Solar Inverter Advanced MPPT Controller

The grid power inverter has 1-phase mode settings, suitable for single-phase power systems. This enables the inverter to meet different application needs and offers flexible installation options.

Rated Power 2400W 24VDC Off Grid Solar Inverter Wide input voltage range

The off grid mppt solar inverter has optional input voltage ranges for different application scenarios. For personal computers, the optional voltage range is 170~280VAC; for household appliances, the optional voltage range is 90~280VAC. This enables the inverter to adapt to voltage fluctuations in different regions and power networks.


Rated Power 2400W 24VDC Off Grid Solar Inverter Self-protection function

The grid power inverter has multiple self-protection functions to protect the safety and reliability of the inverter and connected equipment. These include an overcharge protection function, which will trigger a protection mechanism when the battery voltage reaches 33VDC to prevent overcharging; meanwhile, the inverter also has a high-efficiency battery-to-inverter conversion, which can reach a peak efficiency of 94%.


Rated Power 2400W 24VDC Off Grid Solar Inverter Large-capacity battery support

The off grid mppt solar inverter supports 24VDC battery power supply, and has a maximum 60A AC charging current to ensure fast charging and stable power supply of the battery. This enables the inverter to provide continuous and reliable power output for off-grid systems.

Specification of Rated Power 2400W 24VDC Off Grid Solar Inverter


ModelRaisun RSI44-2.4KW
Phase1-Phase
Maximum PV Input Power2400W
Rated Output Power2400VA/2400W
Maxium Solar Charging Current80A
INPUT
Voltage230VAC
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power4800VA
Efficiency(Peak) PV to INV98%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
BATTERY & AC CHARGER
Battery Voltage24VDC
Floating Charge Voltage27VDC
Overcharge Protection33VDC
Maximum AC Charge Current60A
SOLAR CHARGER
Maximum PV Array Power3000W
MPPT Range Operating Voltage90~400VDC
Maximum PV Array Open Circuit Voltage450VDC
Maximum Charging Current80A
Maximum Efficiency98%
PHYSICAL
Dimension, D×W×H348*270*95mm
Net Weight(kgs)5
Comumication InterfaceUSB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
