Rated Power 3500W 24VDC Solar Inverter

This is muliti-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptibel power support with portable size.

Rated Power 3500W 24VDC Solar Inverter Details

Rated Power 3500W 24VDC Solar Inverter Pure sine wave

Pure sine wave: The pure sine wave inverter is different with modified sine wave. Pure sine wave could adjust voltage or currency flexibly. It could be fast dynamic response with high efficiency.

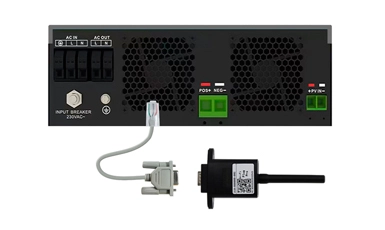

Rated Power 3500W 24VDC Solar Inverter WIFI mould is optional

WIFI mould is optional.

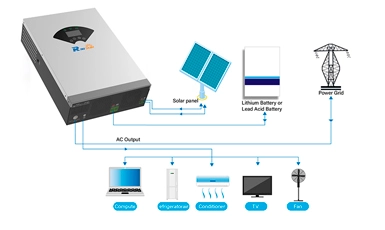

Rated Power 3500W 24VDC Solar Inverter Off grid inverter

Off grid inverter. It could run in a separated system out of grid.

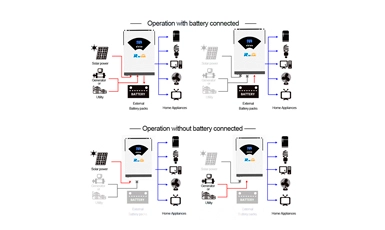

Rated Power 3500W 24VDC Solar Inverter Product Topology

Product Topology. Solar inverter could operate with or without battery connected.

Rated Power 3500W 24VDC Solar Inverter Contact with various Battery Options

Contact with various Battery Options: Working with multiple batteries options, such as Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM Batteries.

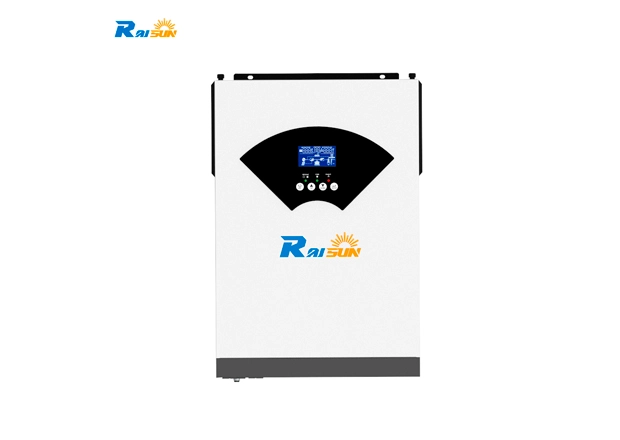

Rated Power 3500W 24VDC Solar Inverter LCD display and automatic protection

LCD display and automatic protection: The machine could start up the LCD screen when running. And, it has overload protection and short circuit protection automatically.

Specification of Rated Power 3500W 24VDC Solar Inverter

ModelRaisun RSI41-3.5KW
Maximum PV Input Power3500W
Rated Output Power3500W/3500VA
Maxium Solar Charging Current100A
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power7000VA
Efficiency(Peak) PV to INV97%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
Battery Voltage24VDC
Floating Charge Voltage27VDC
Overcharge Protection33VDC
Maximum Charge Current80A
Maximum PV Array Power5000W
MPPT Range Operating Voltage120~450VDC
Maximum PV Array Open Circuit Voltage500VDC
Maximum Charging Current100A
Maximum Efficiency98%
Dimension, D×W×H440*300*100mm
Net Weight(kgs)11
Comumication InterfaceUSB/RS232/GPRS/WIFI
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
