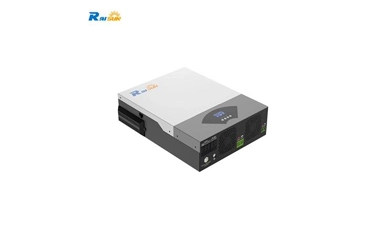

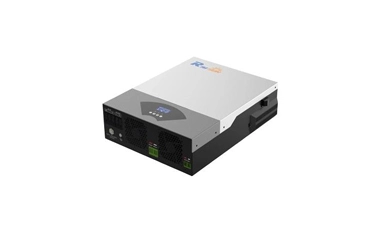

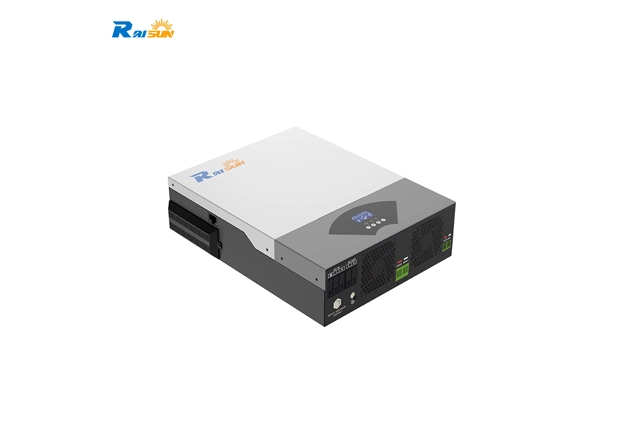

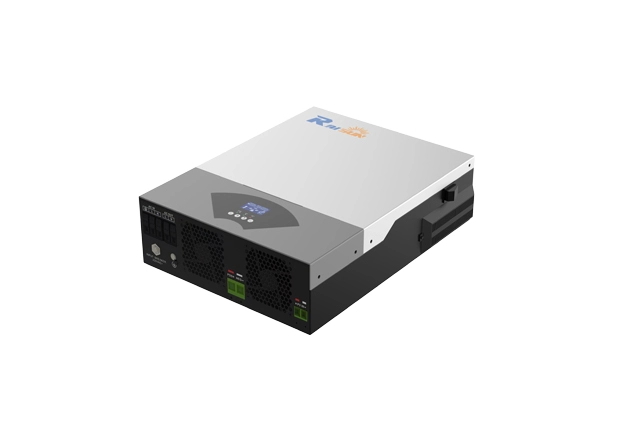

Rated Power 2400W 24VDC Battery Inverter

The Rated Power 2400W 24VDC Battery Inverter is a mid-range inverter that converts DC power from a 24V battery into AC power. It has a maximum rated power output of 2400 watts, making it suitable for various applications where a moderate amount of power is needed. This inverter can power appliances like refrigerators, computers, televisions, and other household electronics. It is commonly used in off-grid solar systems, RVs, boats, and small backup power systems.

Rated Power 2400W 24VDC Battery Inverter Details

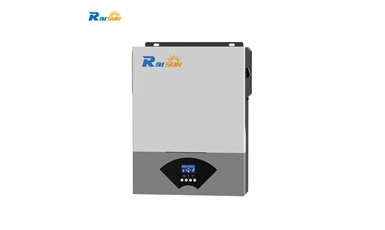

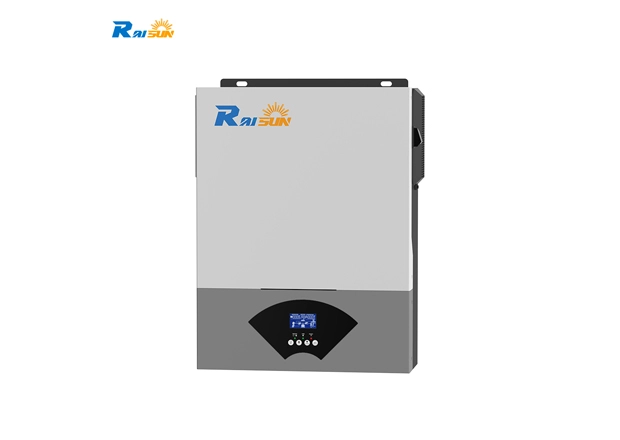

Rated Power 2400W 24VDC Battery Inverter LCD display

The inverter is equipped with an LCD display, which can intuitively display important system parameters and working status. Users can easily monitor the working performance and charging status of the inverter through the LCD display, which is convenient for real-time monitoring and operation.

Rated Power 2400W 24VDC Battery Inverter Battery protection function

Battery Inverter has multiple battery protection functions, including floating charge voltage of 27VDC and overcharge protection voltage of 33VDC. These protection measures can ensure the normal operation of the battery and prolong the service life of the battery.

Rated Power 2400W 24VDC Battery Inverter Protection level

The inverter has a good protection level and is suitable for various working environments. It has a physical size of 34827095mm and a weight of 5kg, which has good shock and shock resistance. In addition, the inverter is also dustproof and moistureproof, suitable for indoor and outdoor installations.

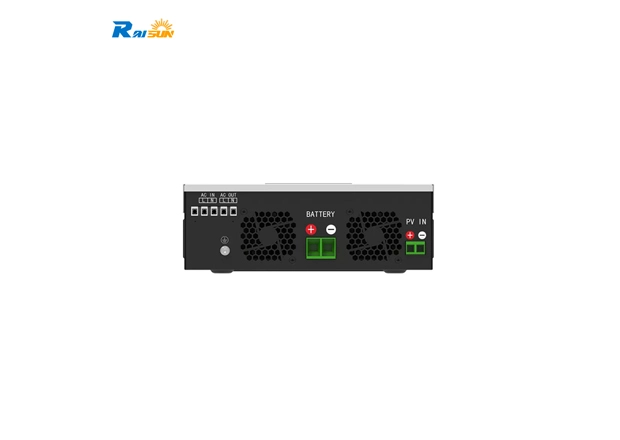

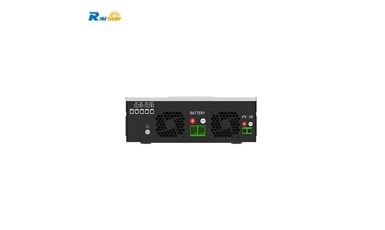

Rated Power 2400W 24VDC Battery Inverter Communication interface

Battery Inverter has a variety of communication interfaces, including USB, RS232, GPRS and WIFI. These interfaces provide a convenient way to enable users to remotely monitor and control the inverter through computers, mobile phones or other devices, improving the manageability and operability of the system.

Rated Power 2400W 24VDC Battery Inverter Overload Protection

Battery Inverter can detect and protect the system from overload. When the connected load exceeds the rated power of the inverter, the inverter will automatically cut off the output to avoid overheating and equipment failure caused by overload.

Specification of Rated Power 2400W 24VDC Battery Inverter

ModelRaisun RSI44-2.4KW
Maximum PV Input Power2400W
Rated Output Power2400VA/2400W
Maxium Solar Charging Current80A
Selectable Voltage Range170~280VAC(For Personal Computers)
90~280VAC(For Home Appliances)
Frequency Range50Hz/60Hz(Auto sensing)
AC Voltage Regulation(Batt.Mode)230VAC±5%
Surge Power4800VA
Efficiency(Peak) PV to INV98%
Efficiency(Peak) Battery to INV94%
Transfer Time10 ms(For Personal Computers); 20ms(For Home Appliances)
Battery Voltage24VDC
Floating Charge Voltage27VDC
Overcharge Protection33VDC
Maximum AC Charge Current60A
Maximum PV Array Power3000W
MPPT Range Operating Voltage90~400VDC
Maximum PV Array Open Circuit Voltage450VDC
Maximum Charging Current80A
Maximum Efficiency98%
Dimension, D×W×H348*270*95mm
Net Weight(kgs)5
Comumication InterfaceUSB/RS232/GPRS/WIFI
Mumidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0℃ ~ 55℃
Storage Temperature-15℃ ~ 60℃
