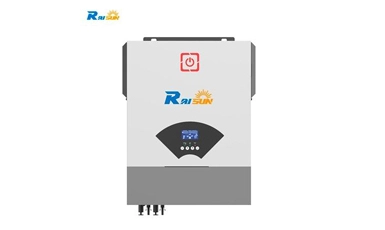

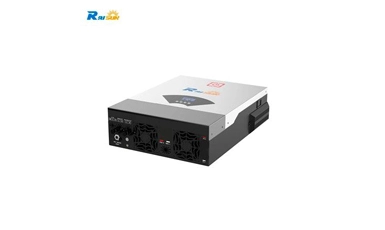

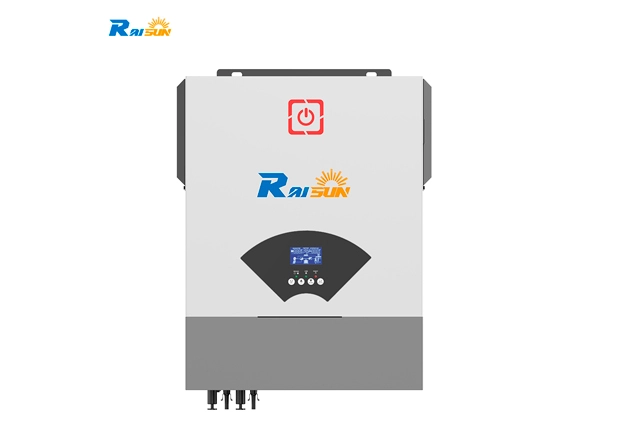

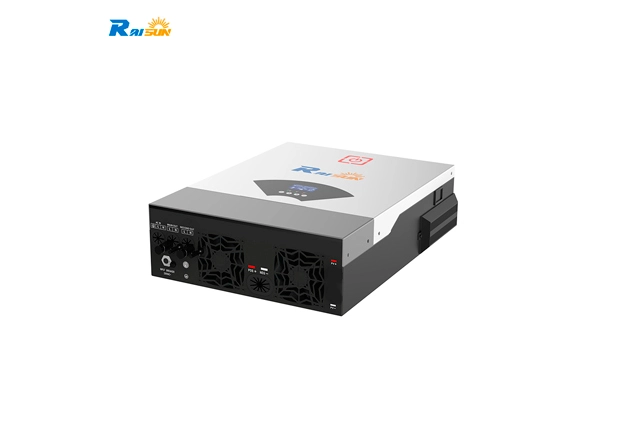

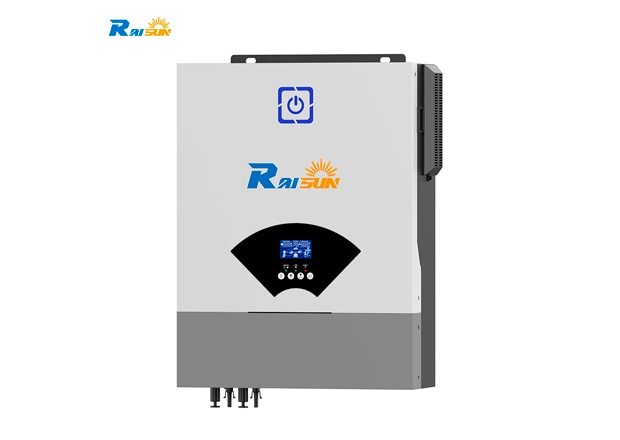

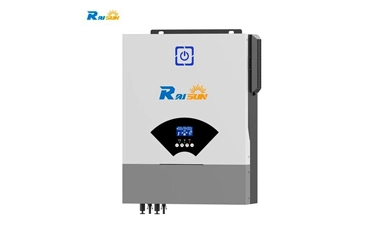

The hybrid solar inverter is a high-performance power management system designed for residential and commercial solar energy systems. This 1-phase inverter offers a maximum PV input power of 10200W and a rated output power of 10200W/10200VA. With advanced features and reliable performance, it efficiently converts solar energy into usable electricity.
This hybrid solar inverter is also an ideal choice for users who plan to buy photovoltaic products for complete solar energy systems, as it offers stable performance, flexible system compatibility, and long-term energy savings for both residential and commercial applications.
It operates in a wide MPPT voltage range of 90VDC to 450VDC, ensuring optimal power generation from the solar panels. The grid output provides a stable 240VAC voltage with a power factor greater than 0.99, allowing seamless integration with the grid, and making it a dependable solar energy inverter for grid-tied systems.
With a maximum conversion efficiency of 98%, the inverter optimizes energy production and utilization. It features two load outputs, supporting a full load of 10200W. The main load can operate at its maximum power of 10200W, while the secondary load (in battery mode) can handle up to 3400W. This flexible load management fully reflects the advanced hybrid solar inverter function.
In off-grid mode, the inverter accepts AC input with start-up voltage ranging. It has a wide acceptable input voltage range, making it suitable for different grid conditions. The surge power capacity reaches 20400W, ensuring smooth operation during power fluctuations.
In battery mode, the inverter provides a stable 48VDC nominal output voltage with a pure sine wave output waveform. It achieves an impressive efficiency of 94% in converting DC to AC power.
The inverter has a compact size and a net weight of 14.5kg, making it easy to install and integrate into solar energy systems. Its sturdy design ensures durability and long-term performance.
| Model | Raisun RSI24-10.2KW | ||
| Phase | 1-Phase | ||
| Maximum PV Input Power | 10200W | ||
| Rated Output Power | 10200W/10200VA | ||
| Maxium Solar Charging Current | 180A | ||
| GRID-TIE OPERATION | |||
| PV Input(DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT Trachers/Maximum Input Current | 1/27A | ||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 240VAC | ||
| Output Voltage Range | 195.5～253VAC | ||
| Nomimal Output Current | 44.3A | ||
| Power Factor | ＞0.99 | ||
| Feed-in Grid Frequency Range | 49±1Hz～51±1Hz | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency(DC/AC) | 98% | ||
| TWO LOAD OUTPUT POWER(V2.0) | |||
| Full Load | 10200W | ||
| Maximum Main Load | 10200W | ||
| Maximum Second Load(Battery mode) | 3400W | ||
| Main Load Cut Off Voltage | 44VDC | ||
| Main Load Return Voltage | 48VDC | ||
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Maximum AC Input Current | 50A | ||
| Nominal Operating Frequency | 50/60Hz | ||
| Surge Power | 20400W | ||
| PV Input(DC) | |||
| Maximum DC Voltage | 500VDC | ||
| MPPT Voltage Range | 90VDC～450VDC | ||
| Number of MPPT Trachers/Maximum Input Current | 1/27A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 48VDC | ||
| Output Wavefrom | Pure Sine Wave | ||
| Efficiency(DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48VDC | ||
| Maximum Solar Charging Current | 180A | ||
| Maximum AC Charging Current | 160A | ||
| PHYSICAL | |||
| Dimension, D×W×H | 537*390*130mm | ||
| Net Weight(kgs) | 14.5 | ||
