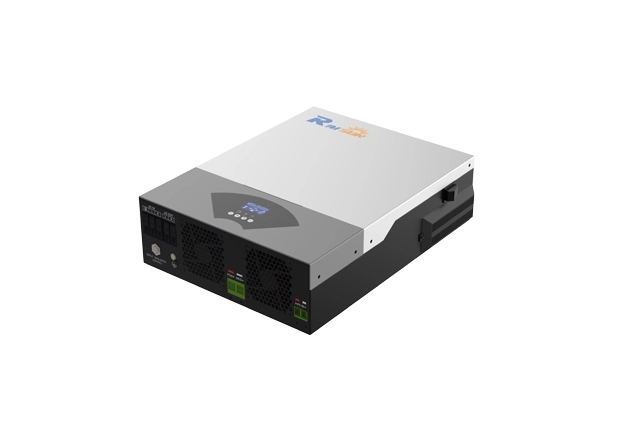

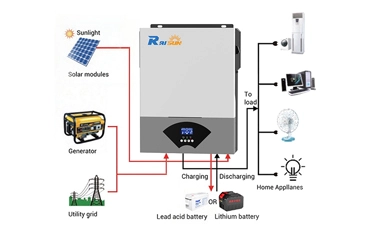

This is muliti-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptibel power support with portable size.

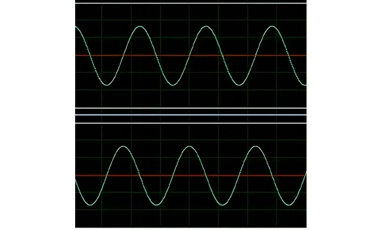

Pure sine wave: The pure sine wave inverter is different with modified sine wave. Pure sine wave could adjust voltage or currency flexibly. It could be fast dynamic response with high efficiency. This makes it suitable for sensitive electronics and varied photovoltaic products applications.

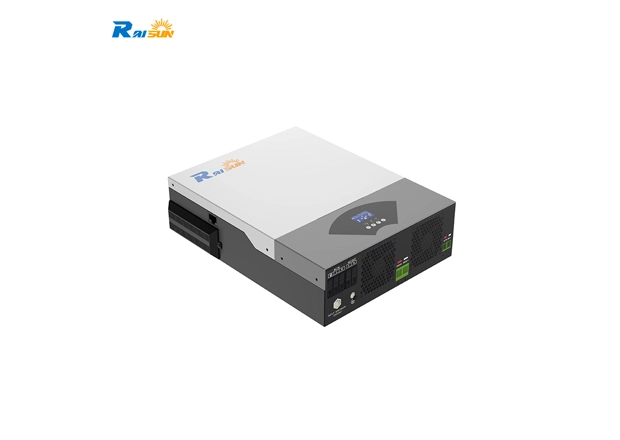

The offgrid solar inverter features a flexible size and weight, making it easy to integrate into small to medium-scale solar energy inverter systems.

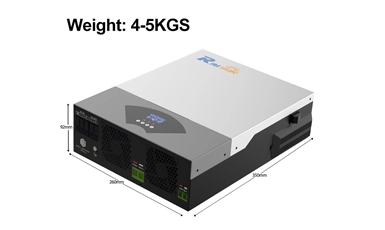

Flexible size and weight.

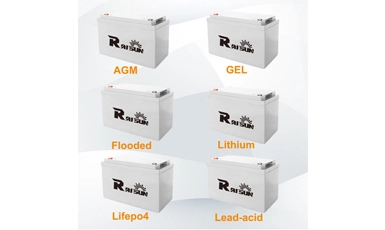

This inverter is compatible with multiple battery types, including Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, and AGM Batteries. It can work seamlessly with smart hybrid solar inverter systems, ensuring stable power output and energy storage for various applications.
| Model | Raisun RSI44-3.2KW | |
| Phase | 1-Phase | |
| Maximum PV Input Power | 3000W | |
| Rated Output Power | 3200VA/3000W | |
| Maxium Solar Charging Current | 80A | |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(For Personal Computers) | |
| 90~280VAC(For Home Appliances) | ||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
| Surge Power | 6400VA | |
| Efficiency(Peak) PV to INV | 98% | |
| Efficiency(Peak) Battery to INV | 94% | |
| Transfer Time | 10 ms(For Personal Computers); 20ms(For Home Appliances) | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | |
| Floating Charge Voltage | 27VDC | |
| Overcharge Protection | 33VDC | |
| Maximum AC Charge Current | 60A | |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 3000W | |
| MPPT Range Operating Voltage | 90~400VDC | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum Charging Current | 80A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension, D×W×H | 348*270*95mm | |
| Net Weight(kgs) | 5 | |
| Comumication Interface | USB/RS232/GPRS/WIFI | |
| OPERATING ENVIRONMENT | ||
| Mumidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃ ～ 55℃ | |
| Storage Temperature | -15℃ ～ 60℃ | |
