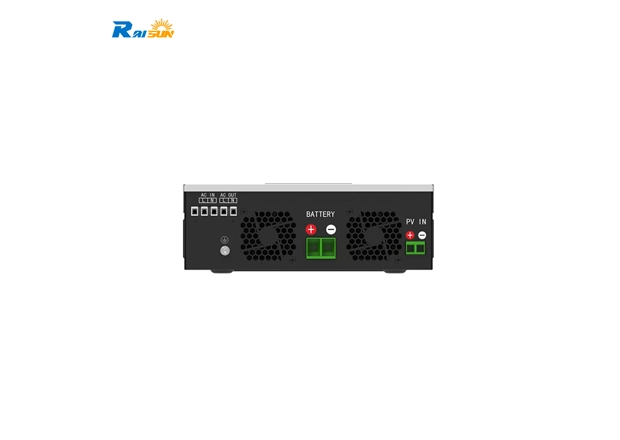

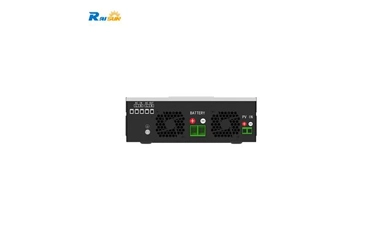

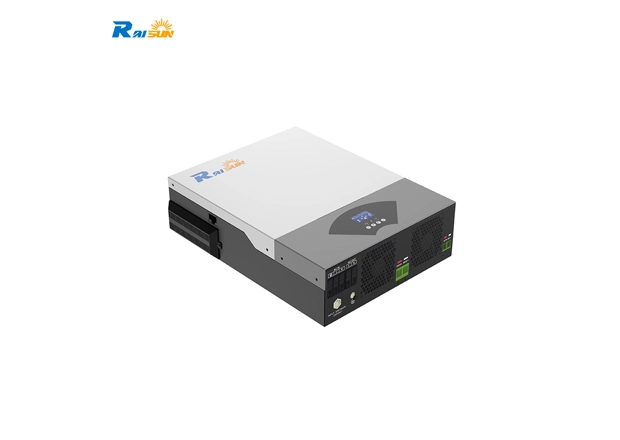

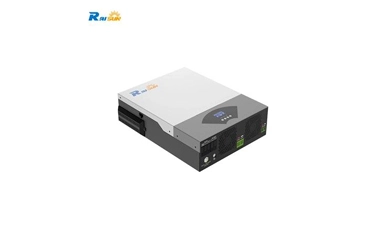

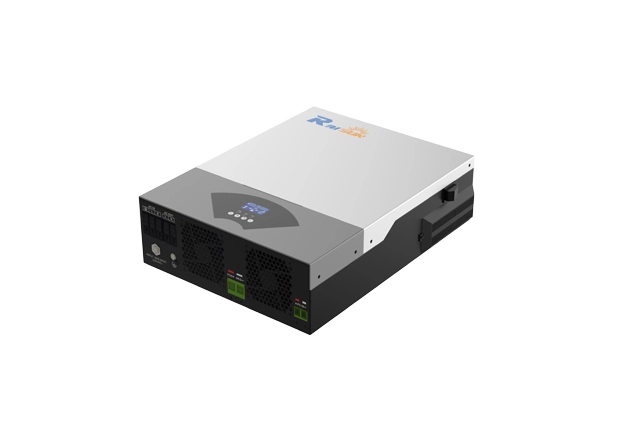

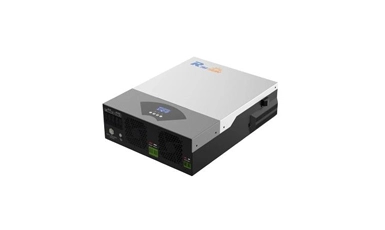

Rated Power 1500W 12VDC PV Inverter

Name: Rated Power 1500W 12VDC PV Inverter
Brand: ShenZhen Raisun Power Technology Ltd.

This 12V DC photovoltaic inverter with a rated power of 1500W features high-efficiency conversion, solar charging function, multiple protection functions, multiple communication interfaces, and a portable size. It is suitable for small solar systems and can provide reliable AC power for homes, campers, boats and more.



Rated Power 1500W 12VDC PV Inverter Details

Rated Power 1500W 12VDC PV Inverter High efficiency

The peak efficiency of this photovoltaic inverter is 98%, and the energy conversion efficiency from photovoltaic cells to the inverter is very high. This helps to improve the power generation efficiency and performance of photovoltaic systems.

Rated Power 1500W 12VDC PV Inverter Strong compatibility

The inverter is suitable for single-phase systems, and its input voltage range is 230VAC, and different voltage ranges can be selected independently to adapt to different electrical appliances.

Rated Power 1500W 12VDC PV Inverter Communication interface

The inverter is equipped with various communication interfaces such as USB, RS232, GPRS and WIFI, which are convenient for users to monitor, remote control and data transmission. Users can obtain system operating status and data in real time, which is convenient for management and maintenance of photovoltaic systems.

Rated Power 1500W 12VDC PV Inverter Solar charging function

The inverter has a built-in solar charging controller, which can be directly connected to the solar panel for charging. It supports a maximum solar charging current of 80 amps, making efficient use of solar resources.

Rated Power 1500W 12VDC PV Inverter Small and portable size

The inverter is relatively small in size, making it easy to carry and install. Light weight (4kg), easy to install in different environments.

Specification of Rated Power 1500W 12VDC PV Inverter

Model	Raisun RSI44-1.5KW
Phase	1-Phase
Maximum PV Input Power	1500W
Rated Output Power	1500VA/1500W
Maxium Solar Charging Current	80A
INPUT
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers)
Selectable Voltage Range	90~280VAC(For Home Appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	3000VA
Efficiency(Peak) PV to INV	98%
Efficiency(Peak) Battery to INV	94%
Transfer Time	10 ms(For Personal Computers); 20ms(For Home Appliances)
BATTERY & AC CHARGER
Battery Voltage	12VDC
Floating Charge Voltage	13.5VDC
Overcharge Protection	16VDC
Maximum AC Charge Current	60A
SOLAR CHARGER
Maximum PV Array Power	2000W
MPPT Range Operating Voltage	90~400VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A
Maximum Efficiency	98%
PHYSICAL
Dimension, D×W×H	34827095mm
Net Weight(kgs)	4
Comumication Interface	USB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Mumidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0℃ ～ 55℃
Storage Temperature	-15℃ ～ 60℃
