Support high-current charging and discharging: 100A(2C) charging and discharging;
Front operation and front wiring are convenient for installation and maintenance;
Adopt high-performance processor, international brand devices, high reliablility;
Multiple comunication interfaces: RS485, RS232, CAN;
Highly compatible BMS, seamless connection with energy storage inverter;
Safety certification: CE, UN38.3, MSDS, etc.

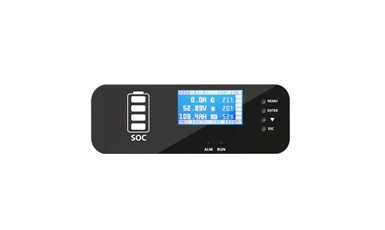

Display by LCD screen.

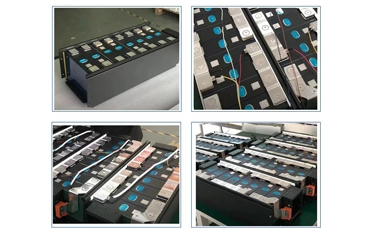

New Grade A battery cells, extremely safe.

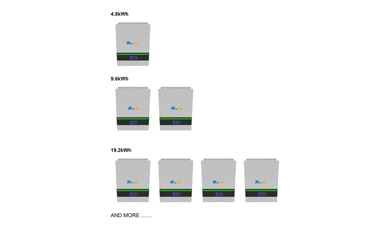

Multiple parallel machines, automatic address acquisition without manual operation.

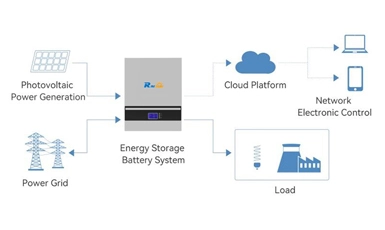

Application Scenarios.

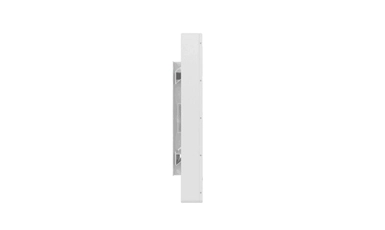

Wall hanging iron sheet.
| Model | Raisun RSB61-25.6V 100Ah |
| Battery Type | LifePO4 |
| Typical Capacity(Ah) | 100Ah |
| Typical Voltage(V) | 25.6V |
| Connection | 1P8S |
| Voltage Working Range(V) | 21.6V-29.2V |
| Working Temperature(℃) | Charge: 0℃ ～ +55℃ Discharge: -20℃ ～ +60℃ |
| Storage Temperature(℃) | -20℃ ～ +35℃ |
| Nominal Capacity(kWh) | 2.56kWh |
| Max. Charge Current(A) | 70A |
| Max. Discharge Current(A) | 75A |
| Cycle Life | ＞5000 |
| SOC Accuracy | ＜8% |
| Weight(kg) | 33kg |
| Dimensions(mm) | 185×450×580mm |
| IP Grade | IP54 |
| Transportation SOC | 30% |
| Cooling | Nature |
| Communication | RS232, RS485, CAN |
| Certifications | MSDS, UN38.3, RoHS, CE |
