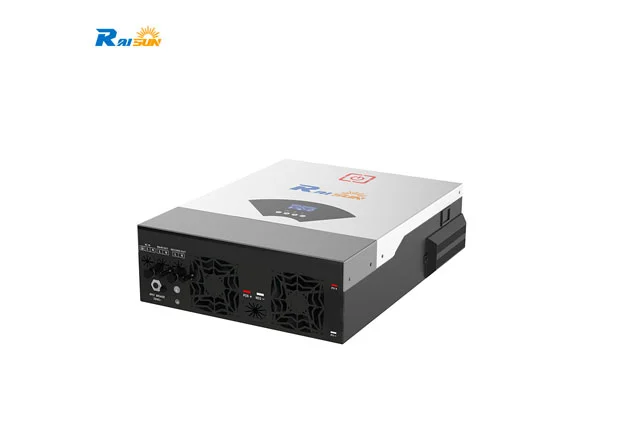

This is muliti-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptibel power support with portable size.

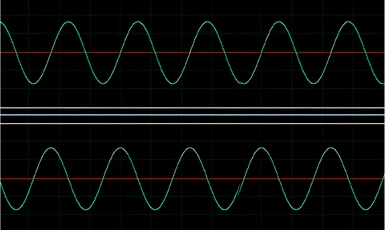

Pure Sine Wave: The pure sine wave inverter is different with modified sine wave. Pure sine wave could adjust voltage or currency flexibly. It could be fast dynamic response with high efficiency. This feature fully supports stable solar energy inverter operation.

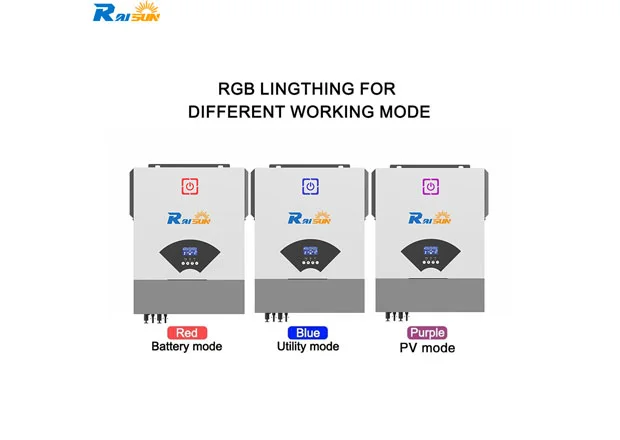

This hybrid solar power inverter supports RGB indicators for different working modes and multiple priority settings.

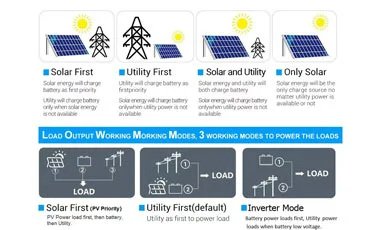

Battery charging priority can be set. It also could set PV Priority, Utility Priority, Hybird Charging or Only Solar Charging.
Load Supply Priority can be set, or PV Priority/Utility Priority/Inverter Mode either could be set.

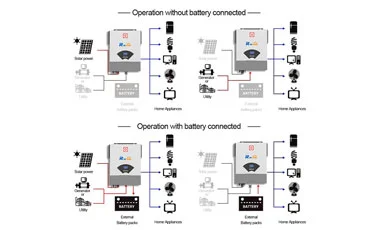

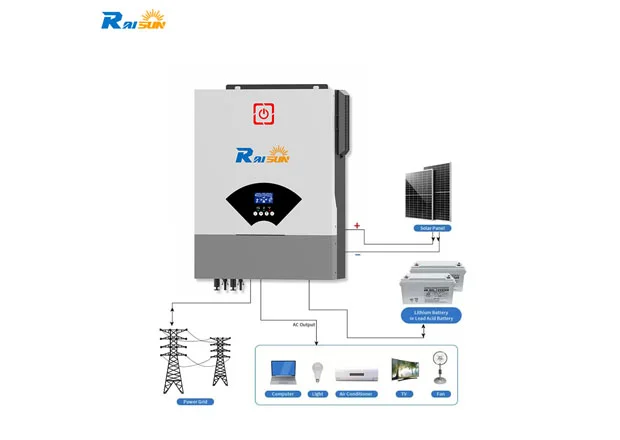

Solar inverter could operate with or without battery connected. And, The power transferring from solar power/generator/utility could use for home appliances or other systems.

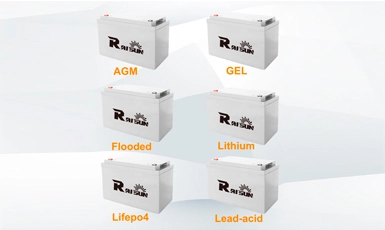

Works perfectly with LiFePO4, lithium, flooded, gel, AGM, and lead-acid batteries – offering maximum flexibility when customers buy photovoltaic products or build their own energy storage systems.

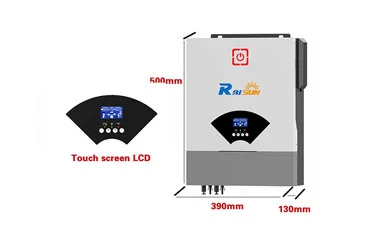

The machine could start up the LCD touching screen when running. And, it has overload protection and short circuit protection automatically.
| Model | Raisun RSI24-8.2KW | ||
| Phase | 1-Phase | ||
| Maximum PV Input Power | 8200W | ||
| Rated Output Power | 8200W/8200VA | ||
| Maxium Solar Charging Current | 160A | ||
| GRID-TIE OPERATION | |||
| PV Input(DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT Trachers/Maximum Input Current | 1/27A | ||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 230VAC | ||
| Output Voltage Range | 195.5～253VAC | ||
| Nomimal Output Current | 35.6A | ||
| Power Factor | ＞0.99 | ||
| Feed-in Grid Frequency Range | 49±1Hz～51±1Hz | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency(DC/AC) | 98% | ||
| TWO LOAD OUTPUT POWER(V2.0) | |||
| Full Load | 8200W | ||
| Maximum Main Load | 8200W | ||
| Maximum Second Load(Battery mode) | 2733W | ||
| Main Load Cut Off Voltage | 44VDC | ||
| Main Load Return Voltage | 48VDC | ||
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Maximum AC Input Current | 40A | ||
| Nominal Operating Frequency | 50/60Hz | ||
| Surge Power | 16400W | ||
| PV Input(DC) | |||
| Maximum DC Voltage | 500VDC | ||
| MPPT Voltage Range | 90VDC～450VDC | ||
| Number of MPPT Trachers/Maximum Input Current | 1/27A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 48VDC | ||
| Output Wavefrom | Pure Sine Wave | ||
| Efficiency(DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48VDC | ||
| Maximum Solar Charging Current | 160A | ||
| Maximum AC Charging Current | 140A | ||
| PHYSICAL | |||
| Dimension, D×W×H | 537*390*130mm | ||
| Net Weight(kgs) | 14.2 | ||
