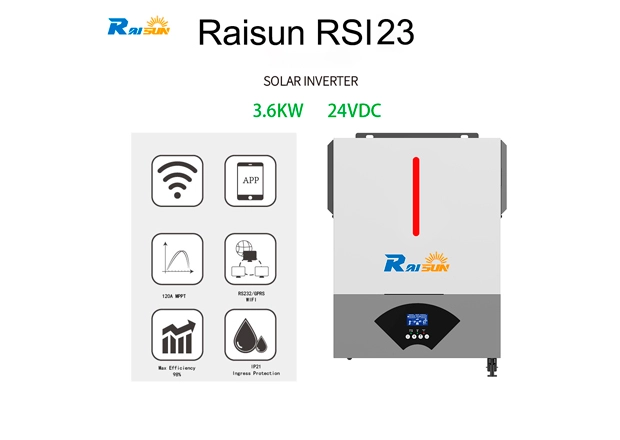

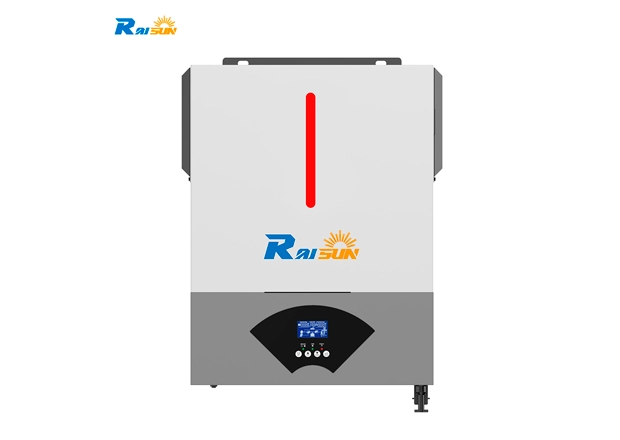

This is muliti-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptibel power support with portable size.

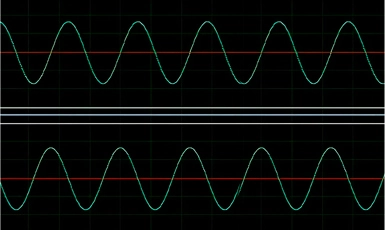

Pure sine wave: The pure sine wave inverter is different with modified sine wave. Pure sine wave could adjust voltage or currency flexibly. It could be fast dynamic response with high efficiency. This ensures excellent solar inverter efficiency and stable power output for sensitive home and commercial appliances.

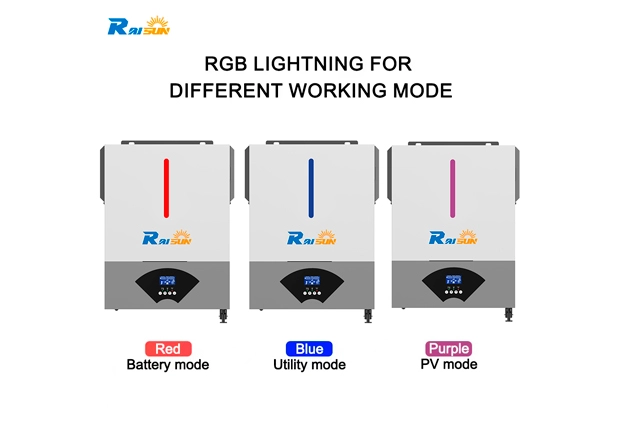

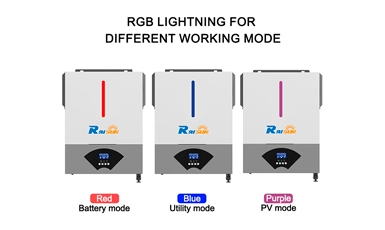

RGB light for different working mode and setting priority for different time and usage. Battery mode, Utility mode and PV mode could show different colors, helping users easily understand the hybrid solar inverter working status.

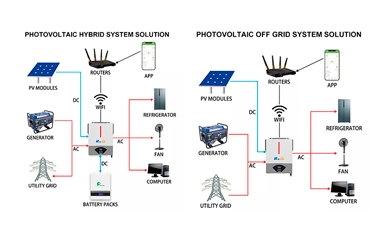

Two system solutions: Photovoltaic off grid system solutions based on photovoltaic inverter technology and hybrid system solutions for flexible energy management.

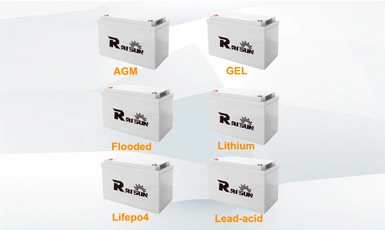

Contact with various Battery Options: Working with multiple batteries options, such as Lifepo4 Batteries, Lithium Batteries, Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM Batteries.

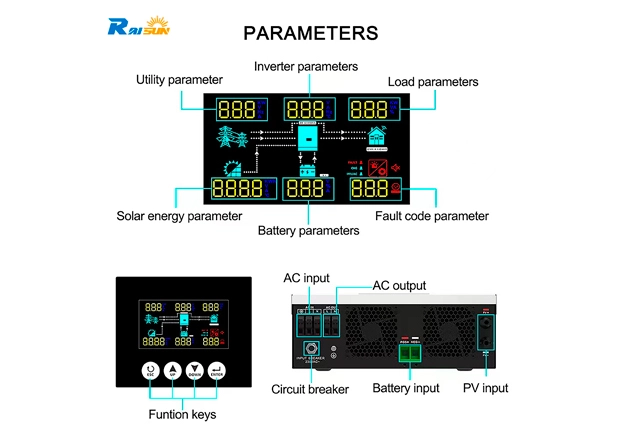

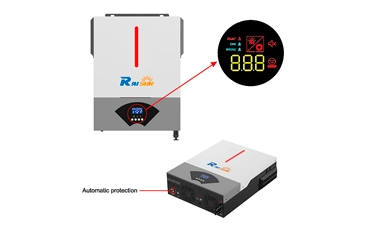

LCD display and automatic protection: The machine could start up the LCD touching screen when running. And, it has overload protection and short circuit protection automatically.
| Model | Raisun RSI23-3.6KW |
| Phase | 1-Phase |
| Maximum PV Input Power | 6200W |
| Rated Output Power | 3600W/3600VA |
| Maxium Solar Charging Current | 120A |
| GRID-TIE OPERATION | |
| PV Input(DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90VDC~450VDC |
| Number of MPPT Trachers/Maximum Input Current | 1/27A |
| GRID OUTPUT(AC) | |
| Nominal Output Voltage | 200VAC |
| Output Voltage Range | 195.5～253VAC |
| Nomimal Output Current | 15.7A |
| Power Factor | ＞0.99 |
| Feed-in Grid Frequency Range | 59～61±1Hz |
| EFFICIENCY | |
| Maximum Conversion Efficiency(DC/AC) | 98% |
| TWO LOAD OUTPUT POWER(V2.0) | |
| Full Load | 3600W |
| Maximum Main Load | 3600W |
| Maximum Second Load(Battery mode) | 1200W |
| Main Load Cut Off Voltage | 22VDC |
| Main Load Return Voltage | 24VDC |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
| Maximum AC Input Current | 30A |
| Nominal Operating Frequency | 50/60Hz |
| Surge Power | 7200W |
| PV Input(DC) | |
| Maximum DC Voltage | 360VDC/500VDC |
| MPPT Voltage Range | 90VDC～450VDC |
| Number of MPPT Trachers/Maximum Input Current | 1/27A |
| BATTERY MODE OUTPUT(AC) | |
| Nominal Output Voltage | 24VDC |
| Output Wavefrom | Pure Sine Wave |
| Efficiency(DC to AC) | 94% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 24VDC |
| Maximum Solar Charging Current(Solar to AC) | 120A |
| Maximum AC Charging Current | 110A |
| PHYSICAL | |
| Dimension, D×W×H | 420*310*110mm |
| Net Weight(kgs) | 10 |
| TERFACE | |
| Communication Port | RS232/WIFI |
| Environment | |
| Humidity | 5%～95% |
| Operating Temperature | -10℃~50℃ |
